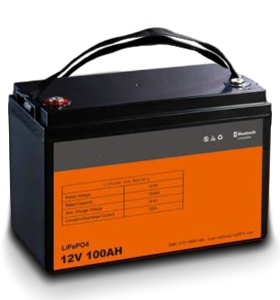

LiFePO4 12V 100AH
    Publish time 2022-08-17 20:03

LiFePO4 12V 100AH

LiFePO4 12V 100AH

Basic Characteristics

Cell Parameter
No.
item
Criterion
1
Battery Type
LiFePO4 Cell
2

Rated Voltage/Capacity

3.20V/6.0Ah

3

Voltage Range

2.00V-3.65V

4

Weight

144g
5
Size
Ø(32.0±0.5) x H(70.2±0.4)mm
6

Cathode Material

LiFeO4
7
Anode Material
Graphite
8
Electrolyte Material
LiPF6
9
Working temperature

Charge: 0˚C ~ 45˚C, Discharge: -20˚C ~ 60˚C

10
Charge Retention
95% (25˚C, 28 days)
11
Cycle life
Over 2000 cycles (0.2C cyccle, 25˚C, capacity retention 80%)
12

Cell dicharge curve at

-20˚C, 10˚C, 0˚C
25˚C, 45˚C, 60˚C










Battery Pack Parameter
No.
Item
CriterionCondistions
1
Nominal Voltage
12.8V
N/A
2
Voltage Range
10V ~ 14.6V
Cell voltage range: 2.5V ~ 3.65V
3
Nominal Capacity
100Ah
N/A
4
Nominal Energy Capacity
1280Wh
N/A
5
Max. Charge Current
100A
1C
6
Max. Cont-Discharge
100A
1C
7
Peak Discharge Current
200A
Duration time for 10 Seconds
8
Cycle Life of Battery Pack
Over 2000 times
At 80% DoD with 25˚C
9
Total Weight
14KG
N/A
10
Humidity
10% ~90%
N/A
11
Cooling Method
Natural Cooling
N/A
12
Working Temperature
Charge: 0˚C ~ 45˚C; Discharge: -20˚C ~ 60˚C
N/A

BMS Specification
No.
Item
Content
Criterion
1
Charge and Discharge Port
N/A
Shared
2
Communication
N/A
N/A
3
Parallel Connection
N/A
Not allowed
4
Serial Connection
N/A
Max. 4pcs
5
Normal Current
Charge Current
≤100A
Discharge Current
≤100A
6
Over Charge Protection
Over charge detection voltage
3.90V ±0.025V
Over charge detection delay time
0.96 ~ 1.4sec
Over charge release voltage
3.80 ±0.05V
Over charge release condition
Cut-off charger
Maximum charge voltage
3.65V ±0.05V
7
Over Discharge Protection
Over discharge detection voltage2.0V ±0.05V
Over discharge detection delay time
115 ~ 173ms
Over discharge release voltage
2.3V 2.0V ±0.10V
8
Over Current ProtectioOver current detection current
200A ±10A
Over current detection delay time
9ms ±2ms
Over current release condition
Cut load
9
Short Circuit Protection
Yes
N/A
